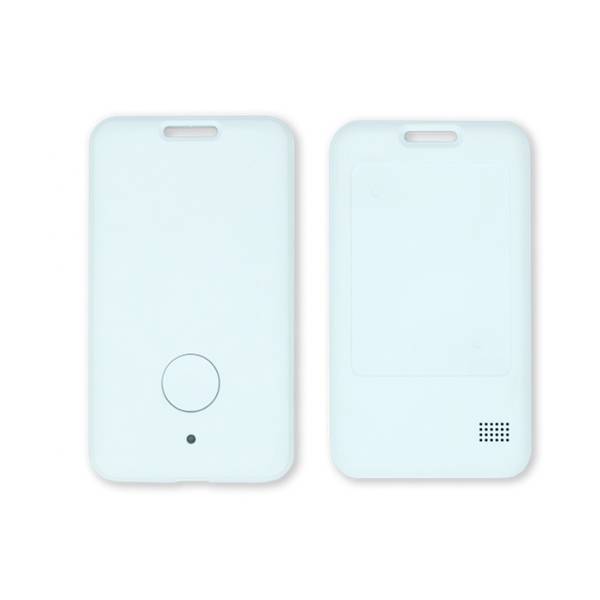

NB-IoT GPS Smart Badges for Construction site
End device

NB-IoT GPS Smart Badges for Construction site

  • Vendor:LPWAN SPACE
  • Category: IoT Devices -Smart Tracking
Availability: In Stock
$89.00
Wishlist Compare

G805B is a smart ID badge based on NB-IoT network transmission. It supports GPS and Beidou dual-mode outdoor positioning and WIFI and Bluetooth indoor positioning. Through the intelligent tracker, beacons, LoRaWAN gateway, and Web platform/APP, it can realize the real-time positioning of staff and visitors. Help enterprises and institutions achieve personnel management and safe production, Can be widely used in scenarios such as nursing homes, construction sites, campuses, and municipal workplaces.

Features

  • Build-in GPS, Beidou、Wifi, and motion sensor to realize seamless indoor and outdoor positioning. Support step counting and movement detection.
  • Buid-in low-power Bluetooth to achieve more accurate indoor positioning.
  • NB-IoT Low power consumption network+ultra-low power BLE SOC processor to achieve ultra-long standby.
  • Build in flash, when the network is down, the positioning and number of steps data will be saved and recover transmit once the network recovers.
  • 13.56MHz RFID optional
  • SOS in an emergency: Press the positioning button to relocate your position and send it to the platform.
  • External personnel management
  • Support OEM for Bulk orders.

Specification

Specification Parameter Description
Outlook Dimension/Weight 101 x 59 x 9mm / 50g
Color White
Material PC+ABS
Wearing Method Rope
Host MCU BLE5.0 (for OTA, advertising/scanning, etc…)
Memory 64Kbits SRAM + 1Mbits Flash
Network Network  NBIoT
Band B5,B8, B3,B20,B28 optional
SIM card Nano SIM card
Positioning Location mode GPS/Beidou+Wifi+LBS+ BLE
GPS positioning accuracy 5-20 meters in an open area.
Wifi positioning accuracy Depends on the density of the surrounding WIFI, generally 10~50 meters.
BLE positioning accuracy Depends on the deployment density of Ibeacons. 1~3 meters @ 6~8 meters I beacon deployment density.
Motion detection Build-in high precision acceleration sensor, standby when there is no moment detected.
Interface LED indicator 1*Red+1*BLE LED
Button 1 button (SOS,power on/off)
Electrical Battery 1000mAh Li-ion rechargeable battery / operation voltage 3.7V / Charging:2 hours
Charging port Micro USB (with charging cable by default)
Adapter 5V / 1A  (Optional)
Standby time Standby for more than 20 days, normal use 7~10 deays @ 10 mins reporting cycle.
Environment features  Operation Temp -10°C ~ 60°C
Storage Temp -30°C ~ 80°C
Operation humidity -10% ~ 85% HR
Enclosure IPX5
Functions Geo-fence Support
Historical track Support historical data query for more than 100 days.
Alarm SOS alarm, Geo-fence alarm, lower power alarm
Platform Support third-party platform
Package Standard Neutral package, Smart Badge*1, Rope*1. Charging cable*1, user manual*1
Optional I beacon; RFID tag; charging adapter
