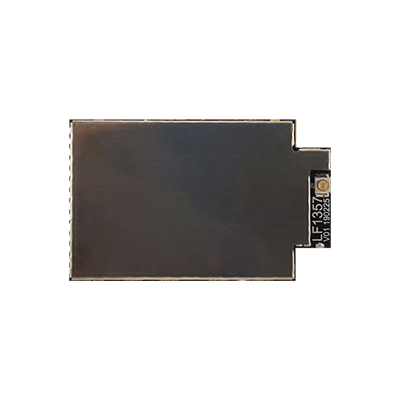

LF1357 LoRa gateway/concentrator module
Part list: 1x LoRaWAN gateway Module
LF1357 is a LoRa concentrator card based on SX1301 or SX1308 chipset. Each module support eight(8) programmable Lora parallel demodulation channels, allowing it to receive up to eight LoRa® modulated packets simultaneously. -142.5dBm high sensitivity combines with +27dBm power amplifier yields industry leading link budget making it optimal for applications requiring extended range and robustness.
Features
- Multichannel: Eight(8) programmable Lora parallel demodulation channels.
- SPI Interface: The SPI interface gives access to the configuration register of SX1301 via a synchronous full-duplex protocol.
- Compact size TYP. 44.0 *27.2 *3.0mm (W*L*H)
- Environmentally-friendly RoHS compliant
Function block diagram
Application
- Internet of Things
- Automated meter reading
- Security Sensor network
- Location Monitoring
- Industrial Monitoring and control
- Machine to Machine(M2M)
Part list: 1x LoRaWAN gateway Module
| Model No. | Descripton |
| LF1357-EX | 863~870MHz，IPEX antenna connector，Suitable for Europe |
| LF1357-UX | 902~928MHz，IPEX antenna connector，Suitable for America, Australia, Asia, Korea, Japan etc... |
| Technical Specification | |
| Module Name | LF1357 |
| Product Description | LoRa gateway module |
| Package | LLC |
| Host Interface | SPI |
| Dimensions | TYP.44.0 *27.2 *3.0mm(W*L*H) |
| Electric Specification | |
| Frequency | 863~870MHZ, 902~928MH(Opt.) |
| Band Width | -400-400KHz |
| Tx Power | +27dBm typ+30dBm（Opt.） |
| Receive Sensitivity | Down to -142.5dBm |
| Operation Conditions | |
| Supply Voltage | +3.3V/+3.6V/+1.8V |
| Power consumption | +3.3V,peak current≥100mA +3.6V,peak current≥550mA +1.8V,peak current≥800mA |
| Operating Temp | 0～+70℃/-40～80℃ |
| Humidity | Operating:10%~90%, no condensing |
| WAN Protocol | ISM Band-LoRa® |
| ESD | JEDEC.JS-001,Standard ±1kV,Class 2 |
