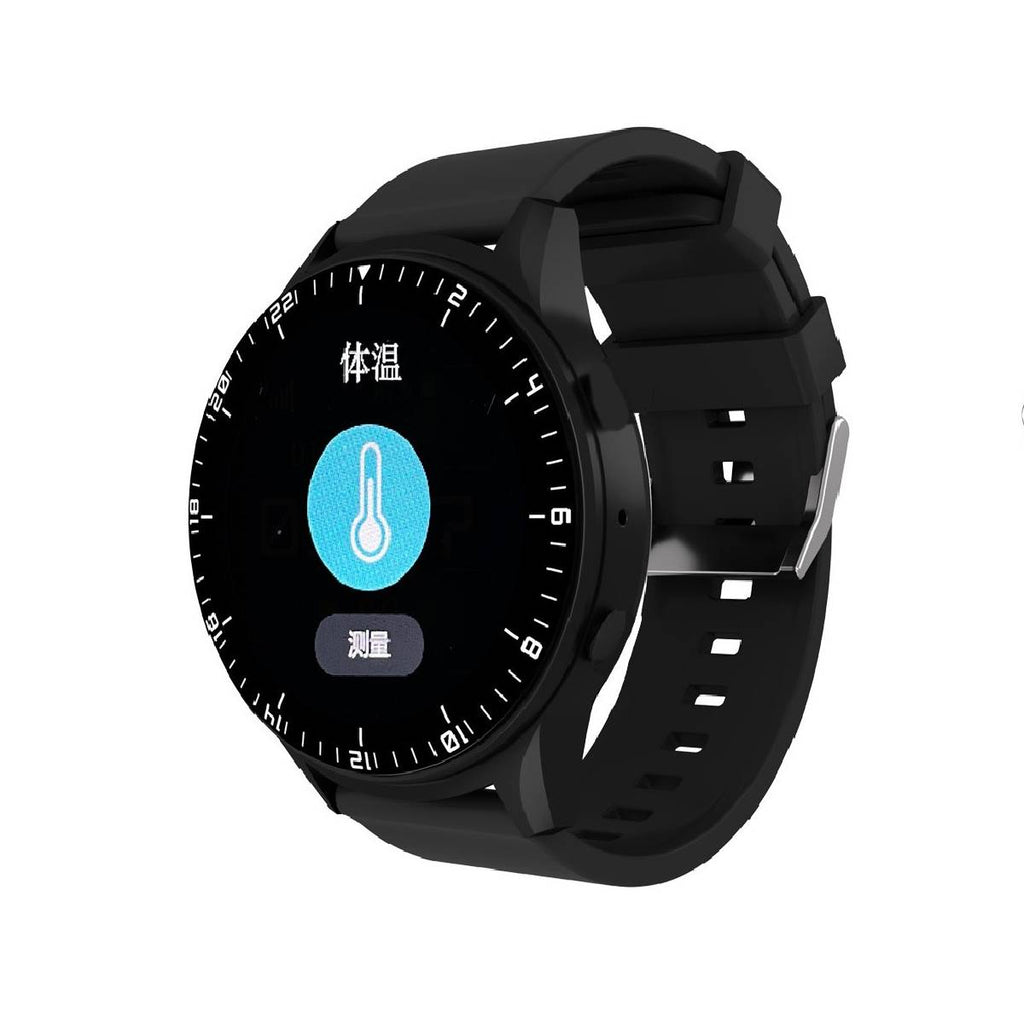

Brand-New LoRaWAN Smart Watch for IoT solutions

SKU:
Vendor:LPWAN SPACE
Category: Best Sellers, Featured Products, Home page, IoT Devices -Smart Tracking, IoT Devices-Health Monitoring

Availability: In Stock

$199.00

Quantity :

Wishlist Compare

ED30W is a LoRaWAN-based smartwatch equipped with GPS for outdoor positioning and BLE 5.0 for indoor location. it can realize a real-time collection of health data such as heart rate, body temperature, blood pressure, SpO2, and steps. The data will be automatically transmitted to the platform through the LoRaWAN Network.

Features

Connectivity via LoRa: communication range up to 2 KM line-of-sight, 500~700M in dense urban, compatible with any LoRaWAN^TM
Indoor &outdoor real-time tracking
Heart rate, body temperature, blood pressure, SpO2 ,HRV, Pedometer, sleep monitoring: The measurements are made at a configured frequency and automatically sent to the LoRaWAN^TM network.
Real-time alarm: supports SOS in an emergency, lower power alarm, wear detection
Long Battery Life: Battery life 40 hours @ 3 mins uplink duty cycle.
OTAA, Class A by default.

Application

Smart safety solution for people working in industrial companies. Such as large oil and gas companies, mining, smart cities, and utilities.
Smart senior care/nursing homes /Hospitals.

IoT smart watch for smart senior care

Parameters	Specification
Modem	ISM Band LoRa®
Tx Power	EU863~870MHz: up to 14dBm
	US902~928MHz: up to 20dBm
	IN865~867MHz: up to 20dBm
	AS923Mhz (Country specific)
MCU	Bluetooth5.0 Cortex-M5 SoC (support OTA upgrade)
Memory	256K bits SRAM+5Mbits Flash
GNSS	Build in GNSS, Positioning accuracy: 20 Meters CEP
Bluetooth	Build in BLE5.0, positioning accuracy varies depends on Beacon density,If the beacon deployment density is 6–8 meters, the positioning accuracy is 1–3 meters; with an AOA Bluetooth gateway, the accuracy can reach the 1-meter level.
Wear detection	Equipped with a high-precision accelerometer and heart rate sensor. Automatically switches to ultra-low power mode when not worn.
Gyroscope/Geomagnetic	Reserved design (not included by default)
Downlink Message	Optional
Display	1.3 inch, 240*240 TFT round Display
Touch screen	Capacitive Touch Screen
Vibrator	Build in vibrator
Rubber strap	22mm standard size (Replaceable, (13.56Mhz RFID or NFC strap optional))
Buttons	Function button A and B
Battery capacity	Polymer battery，760mAh， 3.7V
Charging	Magnetic charging cable, charge your device with a PELV or SELV DC 5V – 1A charger/adapter at temperatures between 0°C to 45°C.
Operation time	15 days standby; 3-5 days @3mins reporting cycle
Enclosure	IP67
Health data	Heart rate, Blood pressure, Body temperature, SpO2, HRV,Number of Steps, sleep monitoring
SOS	Support
Alarm	SOS alarm ONLY
Operation temperature	-10~55℃
Operation humidity	10%～85%HR，Non-condensing `
Dimensions	TYP. 475614.2mm (WLH)
Weight	52g
Accessories	Natural package, Magnetic charging cable, User guide, warranty card
