Indoor LoRaWAN Pico IoT gateway

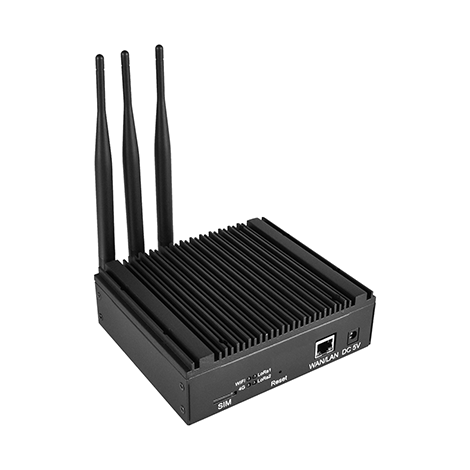

MW6810 is designed to be a fully compliant LoRaWAN gateway, with WiFi and ethernet as the backhaul（4G optional）. It includes one or two LoRa concentrator, which provides up to 16 programmable parallel demodulation paths. This gateway is perfectly designed for indoor public network extension or for ad-hoc indoor private coverage, like manufacturing, logistics or industrial sites requiring continuous connectivity for their IoT applications.
Features
- LoRaWAN™ network compliant
- Channels: Up to 16concurrent channels
- Supports Ethernet and WIFI backhaul， 4G optional
- Based on the OpenWrt system
- Compact size:126*148*49mm ±0.3mm
- Simple to mount and install
- EU868, US915, AU915Mhz，AS923 and CN470 versions available.
Applications
- Smart Buildings & Home Automation
- Logistics and Supply Chain Management
- Smart Metering
- Smart Agriculture
- Smart Cities
- Smart Factory
Ordering information
| Item | Description |
| MW6810-U | 902-928MHz,for USA ,Australia, Asia ,Korea, Japan etc.. |
| MW6810-E | 863~870MHz，for Europe |
| MW6810-C | 470-510MHz, for China |
| MW6810-W | 433MHz for Europe |
| Hardware: | Communication: |
| − CPU: MT7688AN | − 10/100M Ethernet*1, |
| − Core： MIPS24KEc | − 150M WIFI rate，support 802.11b/g/n |
| − Frequency：580MHz | − LED indication |
| − RAM: DDR2, 128M | − Secure VPN |
| − FLASH: SPI Flash 32M | − LoRaWAN™ compliant (433~510MHz or 863~928MHz, Opt） |
| Power supply: | − LoRa™ Sensitivity -142.5dBm, up to 16 LoRa™ demodulators |
| − DC5V/2A | − More than 10km in LoS and1～ 3km in a dense environment |
| − Average power consumption: 5W | GENERAL INFORMATION: |
| Enclosure: | − Dimensions: 126*148*49 mm |
| − Alloy | − Operation temperature: -40oC~+80 oC |
| Install: | − Storage temperature: -40 oC~+80 oC |
| − Strand mount/wall mount、 | − Weight：0.875KG |
