LoRaWAN GPS Cattle Collar
End device

LoRaWAN GPS Cattle Collar

  • Vendor:LPWAN SPACE
  • Category: Home page, IoT Devices -Smart Tracking, IoT Devices-Livestock Monitoring
Availability: In Stock
Wishlist Compare

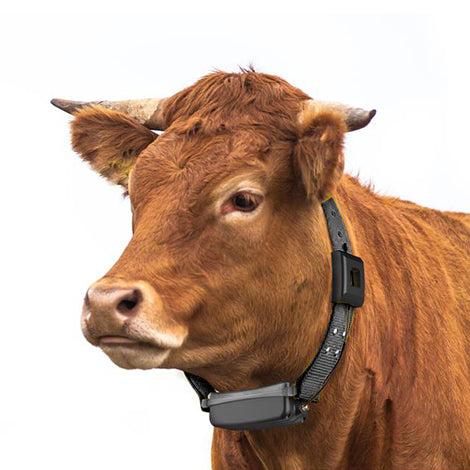

GA5201 is a LoRa-based GPS tracking device for cattle tracking with Li-SOCl2 battery. The livestock tracker’s GPS location data will be uplinked to the LoRaWAN gateway according to the schedule you choose, The collar is programmed wirelessly by the network server. You can control how often GPS location data are collected, and can also remotely command program changes to the fixed-rate and mortality schedule, fixed duration time, geofence and GPS location data transmission interval.

Smart Cattle Tracker


    • Communicate via LoRa, No SIM card is required
    LoRaWANTM compliant, creates a reliable backup communication network for use when cell service is down, enables ranchers to track thousands to millions of cattle in the field without the expense of cellular subscription. Remotely modified user-selectable location and data transmission schedule
    • Long battery life
    Each tracker is equipped with two replaceable 19000mah batteries, with battery life as long as 3~5 years @ 1 location per hour, A notification is sent when the battery power falls below 20% tracker.
    • Theft Alarm
    Set a customized safe zone and get notifications on your platform when the cattle enter or leave the zone, allowing ranchers of herds to reduce the theft of cattle. support collar cut alarm.
    • IP67 Water-Proof design
    Weight just 360g, Special Collars to hold the tracker for the cows, horses, and other large animals.

    Ordering information

    • 1* GPS Cattle Tracker
    • 1* Collar


    The LoRaWANTM-based cattle tracking system is capable of tracking and detecting anomalies in cattle behaviour at any time. Ranchers can locate their cattle to better manage the herd and prevent and recover cattle theft.

    Application Cattle Tracker LoRa
      Parameters Specification
      Frequency Band 433~510MHz/AS923MHz,EU868Mhz,US915MHz Optional
      Battery Specs 38000mah Li − SOCl2 battery, Non-rechargeable
      Temperature -40~75℃
      Electronics Box Dimensions 185*57*53mm (Weight 360g)
      Communication range Up to 15km(line-of-site)2~5KM(in dense urban)
      Transmit Power +20dBm
      Modulation LoRa Modulation Patented by Semtech
      LED indicator Configurable
      Protection Requirements IP67
      Collar size 5 cm  wide Nylon collar
      Memory 32MB data storage memory
      GPS  positioning solution REALTEK MG1009R,sensitive down to -148dB
      GPS accuracy 5M
