LoRaWAN GPS Smart Badges for Construciton site
End device

LoRaWAN GPS Smart Badges for Construciton site

  • Vendor:LPWAN SPACE
  • Category: Home page, IoT Devices -Smart Tracking
Availability: In Stock
Wishlist Compare

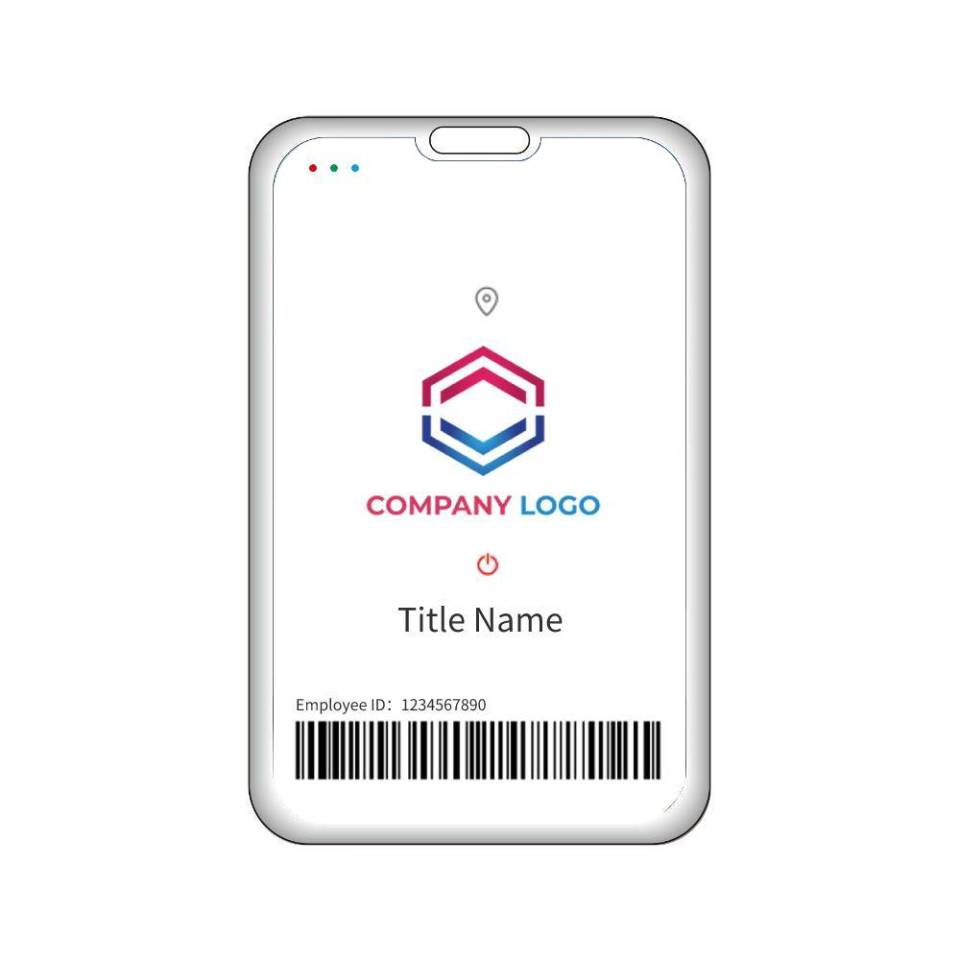

This small badge is an intelligent GPS tracker based on LORAWAN network transmission. It supports GPS and BD dual-mode outdoor positioning and Bluetooth 4.0 indoor positioning. The positioning accuracy is 10~20 meters outdoor and 3~5 meters indoor. Through the intelligent tracker, beacons, LoRaWAN gateway, and platform, it can realize the real-time positioning of staff and visitors. Help enterprises and institutions achieve personnel management and safe production.


  • Indoor & Outdoor real-time positioning
  • Build-in NFC, RFID(Opt.),
  • SOS in an emergency: Press the positioning button to relocate your position and send it to the platform.
  • External personnel management
  • Support OEM for Bulk orders.


Parameter Spec
Communication Build-in LoRa module,Frequency: EU868MHz.AS923MHz.US915MHz,AU915MHz
Bluetooth Building in Bluetooth 4.0
Positioning Outdoor GPS positioning and indoor Bluetooth positioning
Positioning accuracy 10~20 meters (outdoor) 3-5 meters (indoor)
Gyro Build-in gyro, Supports power-saving mode in the non-motion state
Battery Rechargeable 900mah lithium battery
Charging port Type-C
Buttons 1-SOS button  2-Power button
Battery life More than 40hours(GNSS positioning interval 5mins)
Dimensions 86.5*55*8mm
Waterproof IP66
NFC Optional( Detect range 1~15CM)
Time sync Time synchronization with GPS
LED indicator Three colors LED indicator
Operation temperature -20℃~60℃
Uplink frequency customized
Positioning time Cold start 38S     hot start  1S     Recapture  <1S
Charging voltage 5V
