LoRaWAN GPS Tracker for outdoor adventure/asset tracking

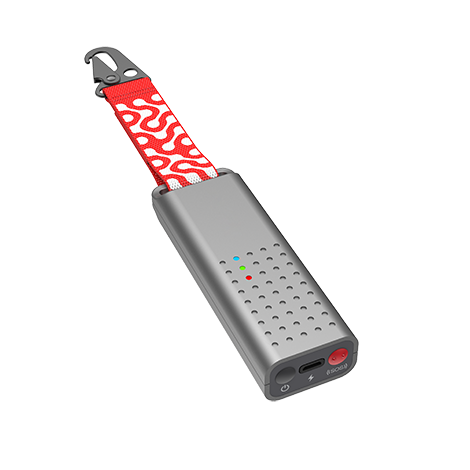

COMPASS is a low power consumption LoRa based GPS tracking device equipped with a rechargeable battery for asset tracking and outdoor adventure.
Features
- LoRaWAN Compliant, no SIM card required
- Create a reliable backup communication network for use when cell service is down. communication range 6~15KM line-of-sight.1~5KM in a dense environment.
- SOS in emergency
- With a simple press of the SOS button on the device, you can send an SOS signal in the case of an emergency.
- Long Battery life
- The device transmits a message at a configured frequency when activated, with a standby time of up to 48hours. A notification is sent when the battery power falls below 20 %.
- Easy to install on any object
Ordering information
Package- 1*COMPASS GPS Tracker
- 1*USB Cable
Application
- Outdoor Adventure: Stay connected in remote areas when cell service is down, share GPS locations, and send SOS if you get into trouble.
- Locate and track children, elderly and disabled people, prevent them from missing, send SOS in an emergency.
- Group management: allows you to keep track of all members of your group within the field in real-time
- Asset tracking: this can be used to track pets, vehicles, fleets, parcels, or bags.
| Parameters | Specification |
| Frequency Band | 868~928MHz/470~510MHz, optional |
| Battery Specs | Recharge Li-ion battery,1000mAh |
| Temperature | -20~65℃ |
| Dimensions | 100*33*20mm (Weight 80g) |
| Modulation | LoRa Modulation Patented by Semtech |
| Transmit Power | +27dBm |
| GPS positioning solution | Sensitive down to -148dB |
| GPS accuracy | 10Meters |
| Communication range | 1～5KM in a dense environment, 6~15KM LoS |
| Install | Easy to install to any objects |
| Data upload rate | Customized |
